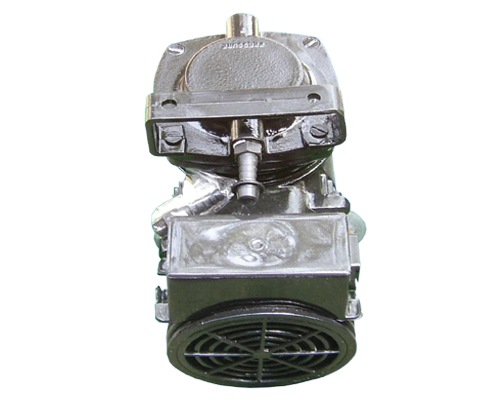

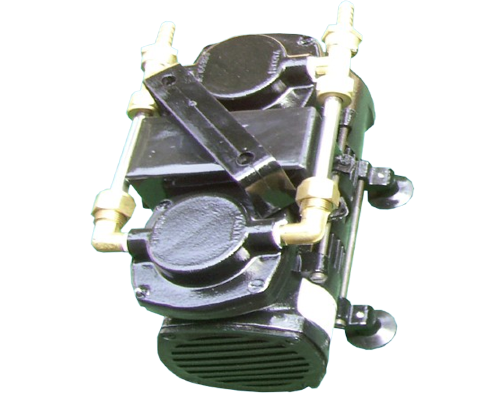

DIAPHRAGM VACUUM PUMP are compact, oil-free units designed for both vacuum and pressure applications. These pumps are portable, low-noise, and constructed from high-grade aluminium die castings, ensuring durability and corrosion resistance. The diaphragms are made from 2-ply nylon-reinforced neoprene rubber, offering enhanced performance and longevity.
Oil-Free Operation - Clean and maintenance-free
Low Noise - Quiet running for sensitive environments
Durable Construction - Aluminium die-cast body for rugged use
Reinforced Diaphragm - Long service life and chemical resistance
Portable Design - Easy to handle and relocate
| Specification | Details |
|---|---|
| Free Air Displacement | 15 - 75 LPM |
| Ultimate Vacuum | 22 - 27 inches Hg |
| Maximum Pressure | 25 - 55 PSI |
| Power Requirement | 1/20 - 1/4 HP |
Laboratory equipment
Pollution control systems
Material handling equipment
Medical instruments
Dental vacuum systems
Air conditioner gas charging
Photographic developing equipment
Plastic welding machines
Nebulizers
Cement aeration systems
